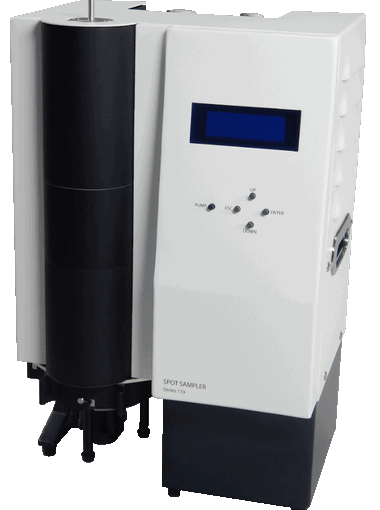

The Series 110A Sequential Spot Sampler instrument enables affordable, time-resolved characterization of particulate chemical composition at multiple locations. It provides an uninterrupted collection of particulate matter (PM) as concentrated dry deposits into small sample wells. PM deposits can be analysed directly using spectrographic methods, or extracted for wet chemistry analysis.
I am interested in this product
Close Form
Downloads
Detailed Specs
High collection efficiency from 5 to >25,000nm
No particle bounce
Captures soluble and insoluble particles
Moderate temperatures (25-30̊C) for condensational growth
No steam injection required
Sub saturated outlet flow at room temperatures
User-selected sampling intervals from 1 minute to 24 hours
Particles concentrated as a 1-mm “spot” in a sample well are ready for analysis
User-selected well temperature to evaporate water
Sample plate may be made from a variety of solid materials
Sample plate may be cleaned and reused
Interface with a PAL3 autosampler for automated chemical analysis
Sequential Spot Sampler Sample Plate options
- Each well can be sampled directly into for later elution and extraction of sample
- Samples can be deposited directly onto a variety of solid, removable substrates inserted into each well.
- 5-mm diameter substrates fit perfectly into the bottom of the wells
- Substrates include glass (microscope coverslips), filter, aluminium foil and many more!
- Sample plates can held in an tray for automated sample preparation and extraction using the PAL3 Autosampler
